  	Version				Order No.
  40 mm center-to-center clearance, 12 x 5 or 2 x (12 x 5)

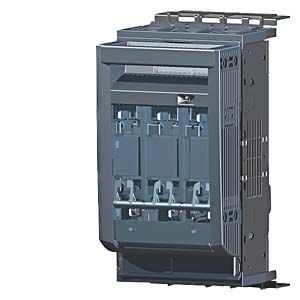

  3NP40 15-1CK01	Fuse switch disconnectors, for NH000 fuse links Rated current In: 160 A Rated operational current Ie: 145 A Connection 1.5 to 50 mm2 Fuses with max. 21 mm width, size 000 (according to IEC 269-2-1 and DIN 43620). Connection over cable lugs, top				3NP4015-1CK01
  8HP6 4..	Covers for 3NP4 01
  	Versions
  	Sealable				8HP6433
  	Not sealable				8HP6434
  3NP40 75-1CE01	Fuse switch disconnectors, for NH00 fuse links Rated current In: 160 A Rated operational current Ie: 145 A Connection up to 120 mm2
  	Versions
  	Connection over cable lugs, top (M8)				3NP4075-1CE01
  	Connection over cable lugs, bottom (M8)				3NP4075-1CF01
  8HP6 4..	Covers for 3NP407
  	Versions
  	Single mounting
  	Sealable				8HP6425
  	Not sealable				8HP6435
  	Double mounting
  	Sealable				8HP6426
  	Not sealable				8HP6436
  3NP42 75-1CG01	Fuse switch disconnectors, for NH1 fuse links Rated current In: 250 A Rated operational current Ie: 225 A Connection up to 150 mm2 Connection over cable lug top (M10) and bottom (M10)				3NP4275-1CG01
  	Note
  	Raised cover or intermediate frame required see Distribution Systems –> Empty Enclosures. When using Cu 12 × 5 mm, a 3NY7 381 bar thickness compensation must be used (1 set = 5 components). If mounting on 5-mm busbars, an additional 3NY7 381 busbar thickness compensator is required.
  8HP6 4..	Covers for 3NP4 2
  	Versions
  	Sealable				8HP6427
  	Not sealable				8HP6437
  49 mm center-to-center clearance, 20 x 8 or 2 x (20 x 8)
  	Fuse switch disconnectors, for NH00 / 2x NH00 / NH1 fuse links from A. Jung, Ostrach All isolators incl. cover
  	Versions	Rated current In	Rated operational current Ie	Connection
  	NH00	160 A	145 A	Up to 50 mm² terminal clamp, top or bottom	8HP4310
  	2x NH00	160 A	145 A	Up to 50 mm² terminal clamp, top or bottom	8HP4311
  	NH1	250 A	225 A	Up to 120 mm² cable connection, top or bottom	8HP4314
  	Note
  	Raised cover or intermediate frame required see Distribution Systems –> Empty Enclosures.





  Дизайн

  Mounting instructions

  • For installation dimensions see ALPHA 8HP molded-plastic distribution systems -> Dimensional drawings.
  • 40 mm center-to-center clearance suitable for 8HP1 701, 8HP1 790 and 8HP1 791.
  • 49 mm center-to-center clearance for 8HP1 704.
