Чертеж

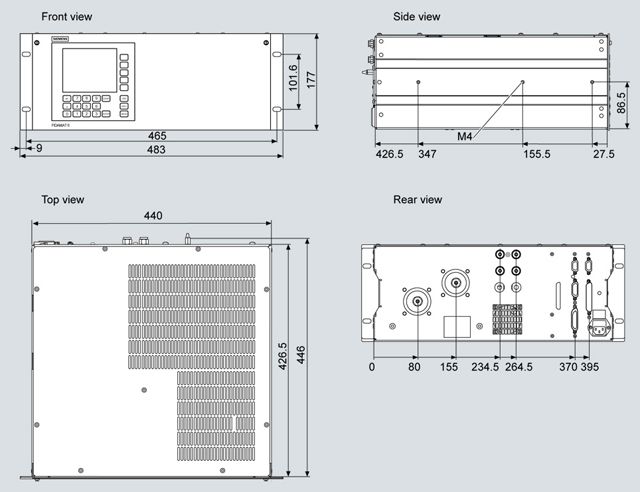

FIDAMAT 6, 19“ unit, dimensions in mm

Схема подключения

Pin assignment (electrical and gas connections)

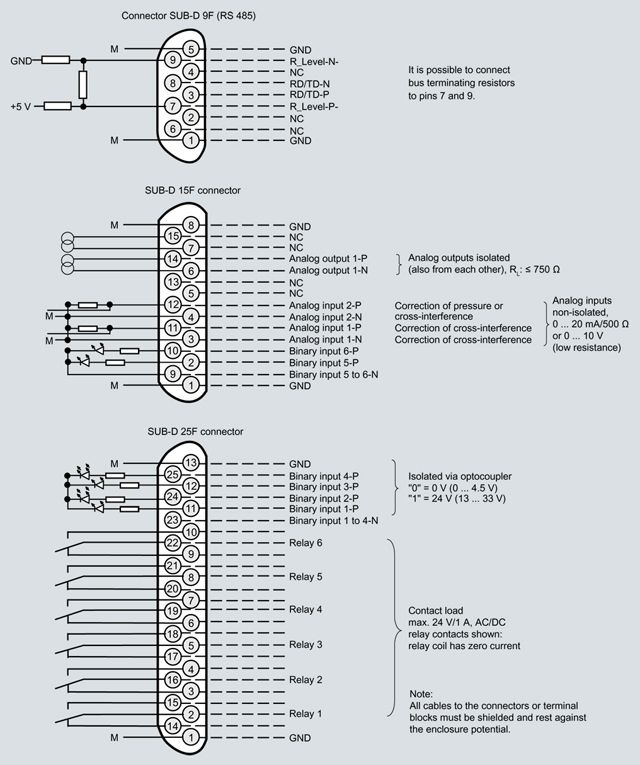

FIDAMAT 6, 19“ unit, pin assignment

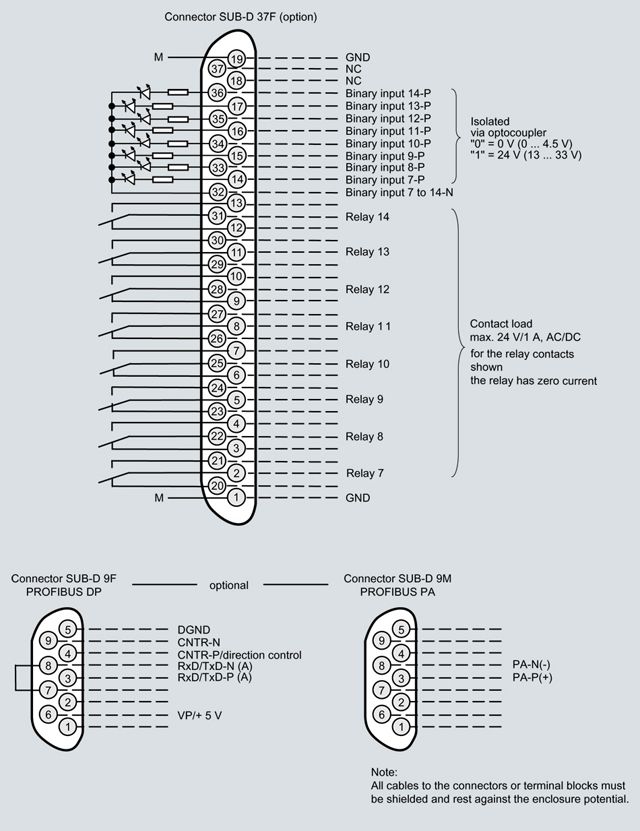

FIDAMAT 6, 19“ unit, pin assignment of the Autocal board and PROFIBUS connectors

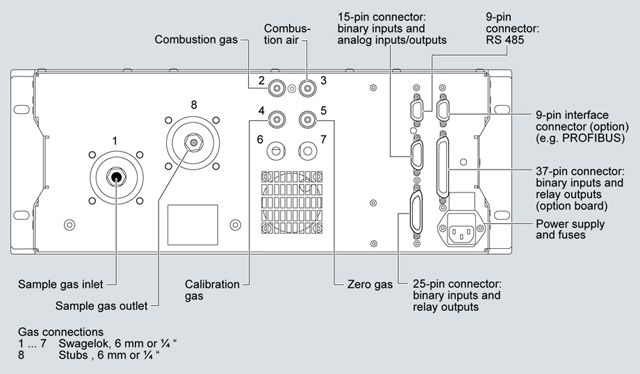

FIDAMAT 6, gas and electrical connections, version with pump

Технические данные

General
Measuring ranges	4, switchable between internal and external; manual and automatic measuring range switchover possible
Smallest possible measuring span	0 ... 10 ppm
Verification limit	0.1 ppm
Largest possible measuring span	99.999 ppm
Concentration units	ppm, C₁, C₃, C₆ or mgC/m³
Automatic measuring range switchover	Hysteresis, selectable
Measured value display	Digital concentration display (5 digits with floating point)
Resolution of the digital display	0.1% of the measured value
Position of use	Front panel vertical
Conformity	CE mark EN 50081-1, EN 50082-2
Oven temperature	Adjustable 100 ... 200 °C
Design, enclosure
Degree of protection	IP20 in accordance with EN 60529
Weight	approx. 23 kg
Electrical characteristics
Auxiliary power	100 ... 120 V AC (rated operational range 90 V ... 132 V), 48 ... 63 Hz or 200 ... 240 V AC (rated operational range 180 V ... 264 V), 48 ... 63 Hz
Power consumption	approx. 150 VA in operation, approx. 350 VA in the warm-up phase
EMC (Electromagnetic Compatibility)	in accordance with standard NAMUR NE21 requirements (08/98)
Electrical safety	in accordance with EN 61010-1, overvoltage category II
Fuse values	100 ... 120 V: 4.0T/250 200 ... 240 V: 2.5T/250
Gas inlet conditions
Permissible sample gas pressure
without pump	< 2000 hPa abs.
with built-in pump	600 … 1100 hPa
Sample gas flow	18 ... 60 l/h (0.3 ... 1 l/min)
Sample gas temperature	0 ... 200 °C
Sample gas humidity	< 90 % RH (RH: relative humidity.)
Time response
Warm-up period	approx. 2-3 h at room temperature
Response time (T₉₀)	2 ... 3 s
Attenuation (electrical time constant)	0 ... 100 s, parameterizable
Dead time (purging time of the gas line in the device at 1 l/min)	with filter 2 ... 3 s
Time for signal processing in the device	< 1 s
Measuring response
Output signal fluctuation	< 0.75% of the smallest possible measuring range according to the rating plate at an electronic attenuation constant of 1 s (this corresponds to ± 0.25% at 2σ)
Zero drift	< 0.5%/month of the smallest possible measuring span according to the rating plate
Measured value drift	< 1%/week of the appropriate measuring span
Repetition precision	< 1% of the appropriate measuring span
Minimum detectable quantity	0.1 ppm (version for ultra-pure gas measurement: 50 ppb)
Linearity error	< 1% of the appropriate measuring span
Influencing variables
Ambient temperature	< 1%/10 K related to the least possible measuring span according to the rating plate
Ambient pressure	< 1%/50 hPa
Sample gas pressure	< 2% of the measuring span/1% pressure change (within 600 … 1100 hPa)
Auxiliary power	< 1% at a change in the output signal span of ± 10%
Frequency	< 1%
Position influence	< 1% at an inclination < 15°
Electrical inputs and outputs
Analog output	0/2/4 ... 20 mA, floating; max. load 750 Ω
Relay outputs	6, with freely parameterizable changeover contacts for identifying the measuring range, for example; load rating: 24 V AC/DC /1 A, floating
Analog inputs	2, designed for 0/2/4 to 20 mA for pressure pick-ups externally and for correcting the influence of residual gas (interfering gas)
Binary inputs	6, designed for 24 V, floating, freely parameterizable, for measuring range switchover, for example
Serial interface	RS 485
Options	Autocal function with 8 additional binary inputs and relay outputs, also with PROFIBUS PA or PROFIBUS DP
Climatic conditions
Permissible ambient temperature	5 ... +45 °C in operation, -30 ... +70 °C for storage and transport
Permissible humidity	< 90% RH (RH: relative humidity) mid-year, for storage and transport (dew point must not be fallen below)

FIDAMAT 6 with pump and heated oven, with combustion air connection
Gases		Operating pressure
	Input pressure	Pump startup		Flow through FID	Flow through bypass
		without	with
	hPa (abs.)	hPa (abs.)	hPa (abs.)	ml/min	ml/min
Combustion gas	3000 ... 5000	1000 ± 20		~ 25	—
Combustion air	3000 ... 5000	1420 ± 20	1500	~ 320	~ 500
Sample gas	~ 1000	—	1500 ± 2	~ 3	~ 1000
Zero gas	3500 ... 4000	—	1500 ± 2	~ 3	~ 1000
Calibration gas	3500 ... 4000	—	1500 ± 2	~ 3	~ 1000

FIDAMAT 6 without pump and with heated oven, with combustion air connection
Gases		Operating pressure
	Input pressure	Sample/calibration gas		Flow through FID	Flow through bypass
		without	with
	hPa (abs.)	hPa (abs.)	hPa (abs.)	ml/min	ml/min
Combustion gas	3000 ... 5000	1000 ± 20		~ 25	—
Combustion air	3000 ... 5000	1485 ± 2	1500	~ 320	~ 300
Sample gas	~ 2000	—	1500 ± 2	~ 3	~ 500
Zero gas	~ 2000	—	1500 ± 2	~ 3	~ 500
Calibration gas	~ 2000	—	1500 ± 2	~ 3	~ 500

FIDAMAT 6 with pump and with heated oven, ambient air = combustion air
Gases	Input pressure	Operating pressure		Flow through FID	Flow through bypass
		Pump startup
		without	with
	hPa (abs.)	hPa (abs.)	hPa (abs.)	ml/min	ml/min
Combustion gas	3000 ... 5000	1000 ± 20		~ 25	xxxx
Sample gas	~ 1000	Xxxx	1500 ± 2	~ 3	~ 500
Zero gas	3500 ... 4000	Xxxx	1500 ± 2	~ 3	~ 500
Calibration gas	3500 ... 4000	xxxx	1500 ± 2	~ 3	~ 500
