  • Каталог оборудования Siemens

Field device

  • Заказные данные
    (1)
  • Аксессуары
    (18)
  • Информационные материалы

    Чертеж

    CALOMAT 6, field unit, dimensions in mm

    Схема подключения

    Pin assignment (electrical and gas connections)

    CALOMAT 6, field unit, connector and terminal assignment

    CALOMAT 6, field unit, connector and terminal assignment of the AUTOCAL board and PROFIBUS connectors

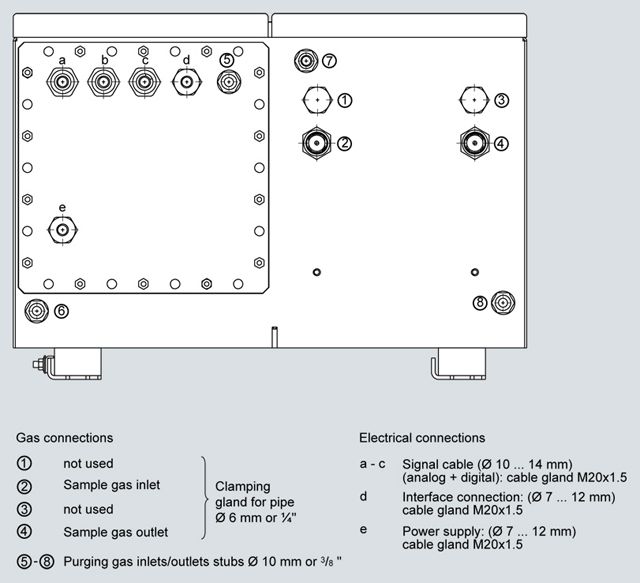

    CALOMAT 6, field unit, gas and electrical connections

    Технические данные

    General information

    Based on DIN EN 61207/IEC 1207. All data based on digital gas mixture H2 in N2

    Measuring ranges

    4, internally and externally switchable; automatic measuring range changeover also possible

    Largest possible measuring span

    100 vol.% H2 (for smallest measuring span, see "Function")

    Measuring ranges with suppressed zero point

    Any zero point within 0 ... 100 vol.% can be implemented; smallest possible measuring span: 5 % H2

    Operating position

    Front wall, vertical

    Conformity

    CE mark in accordance with EN 61326/A1 and EN 61010/1

    Design, enclosure



    Degree of protection

    IP65 according to EN 60529

    Weight

    Approx. 25 kg

    Electrical characteristics



    EMC interference immunity (electromagnetic compatibility)

    All signal lines must be shielded. Measured value deviations of up to 4 % of the smallest measuring range may occur in ranges with strong electromagnetic interference.

    In accordance with standard requirements of NAMUR NE21 (08/98)

    Electrical safety

    In accordance with EN 61010-1; overvoltage category II

    Auxiliary power (see nameplate)

    100 V -10 % ... 120 V +10 % AC, 48 ... 63 Hz or 200 V -10 % ... 240 V +10 % AC, 48 ... 63 Hz

    Power consumption (unit)

    Approx. 20 VA

    Fuse values

    100 to 120 V: 1.0T/250
    200 ... 240 V: 0.63 T/250

    Gas inlet conditions



    Sample gas pressure

    800 to 1 100 hPa (absolute)

    Sample gas flow

    30 to 90 l/h (0.5 to 1.5 l/min)

    Sample gas temperature

    Min. 0 to max. 50 °C, but above the dew point

    Temperature of the measuring cell

    Approx. 60 ºC

    Sample gas humidity

    < 90% relative humidity

    Purging gas pressure


    • Permanent

    165 hPa above ambient pressure

    • For short periods

    Max. 250 hPa above ambient pressure

    Time response

    Based on sample gas pressure 1 000 hPa absolute, 0.5 l/min sample gas flow and 25 °C ambient temperature

    Warm-up period

    < 30 min (the technical specification will be met after 2 hours)

    Delayed display (T90)

    < 5 s

    Electrical damping

    0 ... 100 s, configurable

    Dead time (at 1 l/min)

    Approx. 0.5 s

    Measuring response

    Based on sample gas pressure 1 013 hPa absolute, 0.5 l/min sample gas flow and 25 °C ambient temperature

    Output signal fluctuation (maximum accuracy achieved after 2 hours)

    < ± 0.75 % of the smallest possible measuring range according to rating plate, with electronic damping constant of 1 s (σ = 0.25%)

    Zero point drift

    < ± 1 %/week of the smallest possible measuring span according to rating plate

    Measured-value drift

    < ± 1 %/week of the smallest possible measuring span according to rating plate

    Repeatability

    < 1 % of the current measuring range

    Detection limit

    1% of the current measuring range

    Linearity error

    < ± 1 % of the current measuring range

    Influencing variables

    Based on sample gas pressure 1013 hPa absolute, 0.5 l/min sample gas flow and 25 °C ambient temperature

    Ambient temperature

    < 1 %/10 K referred to smallest possible measuring span according to rating plate

    Accompanying gases

    Deviation from zero point (for influence of interfering gas, see section "Cross-interference")

    Sample gas flow

    < 0.2 % of the smallest possible span according to rating plate with a change in flow of 0.1 l/min within the permissible flow range

    Sample gas pressure

    < 1 % of the current measuring range with a pressure change of 100 hPa

    Electrical inputs and outputs



    Analog output

    0/2/4 ... 20 mA, floating;
    load max. 750 Ω

    Relay outputs

    6, with changeover contacts, freely configurable, e.g. for measuring range identification; load: 24 V AC/DC/1 A, floating

    Analog inputs

    2, dimensioned for 0/2/4 ... 20 mA for external pressure sensor and correction of cross-interference

    Digital inputs

    6, designed for 24 V, floating, freely configurable, e.g. for measuring range switchover

    Serial interface

    RS 485

    Options

    AUTOCAL function with 8 additional digital inputs and relay outputs, also with PROFIBUS PA or PROFIBUS DP

    Climatic conditions



    Permissible ambient temperature

    -30 ... +70 °C during storage and transportation, 5 ... 45 °C in operation

    Permissible humidity (dew point must not be fallen below)

    < 90% relative humidity as annual average, during storage and transportation
