    Чертеж

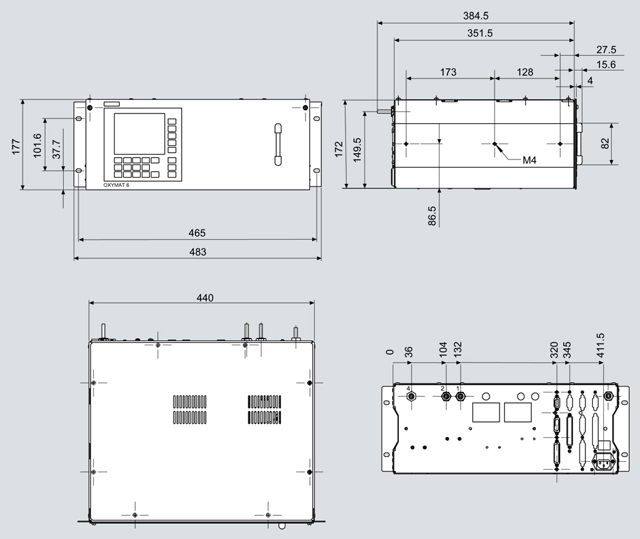

    OXYMAT 6, 19“ unit, dimensions in mm

    Схема подключения

    Pin assignment (electrical and gas connections)

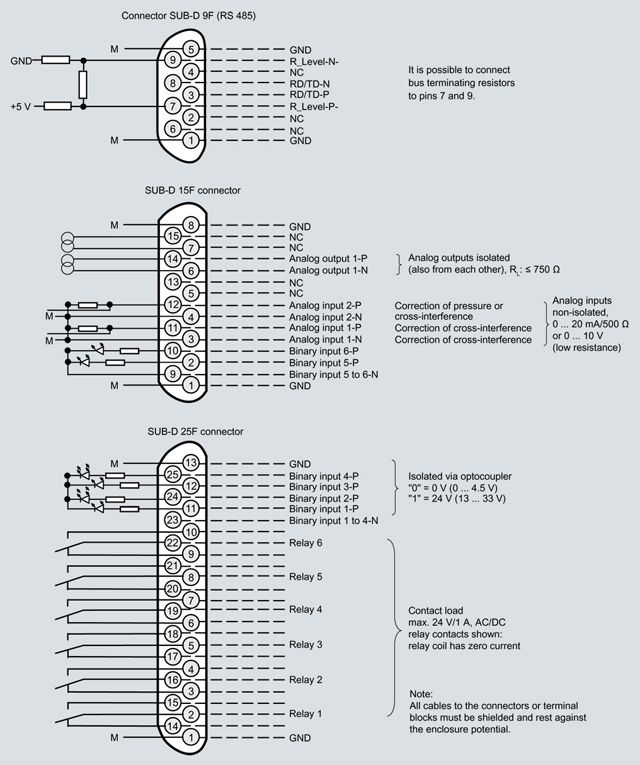

    OXYMAT 6, 19“ unit, pin assignment

    OXYMAT 6, 19“ unit, pin assignment of Autocal board and PROFIBUS connectors

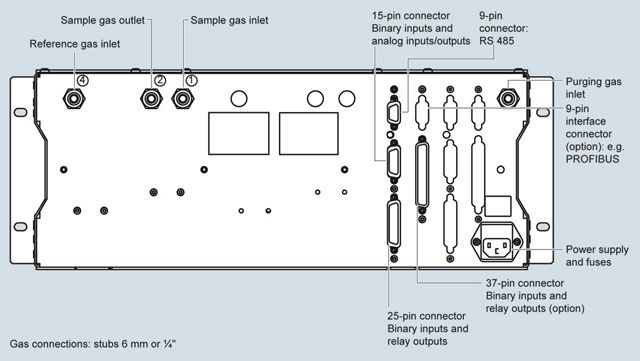

    OXYMAT 6, 19“ unit, gas and electrical connections

    Технические данные

    General



    Measuring ranges

    4, switchable internally and externally; autoranging is also possible

    Smallest possible measuring span (referred to 1000 hPa absolute sample gas pressure, 0.5 l/min sample gas flow and 25 °C ambient temperature)

    0.5% v/v 2% v/v or 5% v/v O2

    Largest possible measuring span

    100% v/v O2 (for a pressure over 2000 hPa: 25 % v/v O2)

    Measuring ranges with suppressed zero

    Any zero point is possible between 0 and 100% v/v as long as a suitable reference gas is used (see Table 1 in „Function“)

    Position of use

    Front panel vertical

    Conformity

    CE identification EN 50081-1, EN 50082-2

    Design, enclosure



    Degree of protection

    IP20 according to EN 60529

    Weight

    Approx. 13 kg

    Electrical characteristics



    Power supply

    100 to 120 V AC (rated range 90 V to 132 V), 48 to 63 Hz or

    200 to 240 V AC (rated range 180 V to 264 V), 48 to 63 Hz

    Power consumption

    Approx. 35 VA

    EMC interference immunity (ElectroMagnetic Compatibility)

    According to standard requirements of NAMUR NE21 (08/98), EN 61326, EN 50270 (with gas warning unit)

    Electrical safety

    According to EN 61010-1, overvoltage category III

    Fuses

    100 ... 120 V: 1.0T/250

    200 ... 240 V: 0.63T/250

    Gas inlet conditions



    Permissible sample gas pressure


    • For analyzers with piping

    500 … 3000 hPa absolute

    • For analyzers with hoses

    • Without pressure switch

    500 … 1500 hPa absolute

    • With pressure switch

    500 … 1300 hPa absolute

    Sample gas flow

    18 … 60 l/h (0.3 … 1 l/min)

    Sample gas temperature

    0 … 50 ºC

    Sample gas humidity

    < 90 % RH (RH: relative humidity)

    Time response



    Warm-up period

    With ambient temperature < 30 min (maximum accuracy achieved after 2 hours)

    Response time (T90)

    min. 1.5 to 3.5 s depending on version

    Damping (electric time constant)

    0 to 100 s, programmable

    Dead time (purging time of gas path in analyzer at 1 l/min)

    Approx. 0.5 to 2.5 s, depending on version

    Time for internal signal processing

    < 1 s

    Pressure correction range



    Pressure sensor


    • Internal

    500 … 2000 hPa absolute

    • External

    500 … 3000 hPa absolute

    Measuring response (referred to 1000 hPa absolute sample gas pressure, 0.5 l/min sample gas flow and 25 °C ambient temperature)

    Output signal fluctuation

    < 0.75% of smallest possible measuring range specified on rating plate with an electronic time constant of 1 s (corresponds to ± 0.25% with 2σ)

    Zero drift

    < 0.5%/month of smallest possible measuring span specified on rating plate

    Measured-value drift

    < 0.5%/month of respective measuring span

    Repeatability

    < 1%/month of respective measuring span

    Minimum detectable quantity

    1% of current measuring range

    Linearity error

    < 1%/month of respective measuring span

    Influencing variables (referred to 1000 hPa absolute sample gas pressure, 0.5 l/min sample gas flow and 25 °C ambient temperature)

    Ambient temperature

    < 0.5%/10 K referred to the smallest possible measuring span according to rating plate, with measuring span 0.5%: 1%/10 K

    Sample gas pressure (with air (100 hPa) as reference gas, a correction of the atmospheric pressure fluctuations is only possible when the sample gas is vented to ambient air)

    Without pressure compensation: < 2% of measuring span/1% change in pressure

    with pressure compensation: < 0.2% of measuring span/1% change in pressure

    Residual gases

    Deviation in zero point corresponding to paramagnetic or diamagnetic deviation of residual gas

    Sample gas flow

    < 1% of smallest possible measuring span according to rating plate with a change in flow of 0.1 l/min within the permissible flow range

    Power supply

    < 0.1% of output signal span with rated voltage ± 10%

    Electric inputs and outputs



    Analog output

    0/2/4 to 20 mA, floating; max. load 750 Ω

    Relay outputs

    6, with changeover contacts, freely selectable, e.g. for range identification; loading capacity: 24 V AC/DC/ 1 A, floating

    Analog inputs

    2, designed for 0/2/4 … 20 mA, for external pressure sensor and correction of influence of residual gas (correction of cross interference)

    Binary inputs

    6, designed for 24 V, floating, freely selectable, e.g. for range switching

    Serial interface

    RS 485

    Options

    Autocal function with 8 binary inputs and 8 relay outputs; also with PROFIBUS PA or PROFIBUS DP

    Ambient conditions



    Perm. ambient temperature

    -30 to +70 °C during storage and transport, +5 to +45 ºC during operation

    Permissible humidity

    < 90% RH (RH: relative humidity) as annual average, during storage and transport (dew point must not be fallen below)
