  SITRANS WF300 series are low to medium capacity flowmeters for various product sizes, densities, and fluidities.

  Область применения

  With weighing mechanics located externally, the WF300 series solids flowmeters are unaffected by corrosive, abrasive, or hot materials. Handling a wide range of product sizes, densities, and fluidities including fine powders such as cement, they operate at process temperatures to 230 °C (450 °F). The flowmeters help to improve final product, increase operating efficiency, and realize significant cost savings.

  Operating with the appropriate SITRANS WFS sensing head and a micro-processor-based integrator package, the WF300 series flowmeters provide a display of the flow rate, totalized flow, and alarms. Outputs are 0/4 to 20 mA proportional to rate, and open collector output for remote totalization.

  Dry bulk solids enter the flow guide producing a mechanical deflection as they strike the flowmeter sensing plate before continuing through the process unhindered. The LVDT in the sensing head converts the deflection of the horizontal force into an electrical signal. The integrator processes this signal into a display of flowrate and integrated total weight. The weighing process is immune to the effect of product build-up as only the horizontal force is measured.

  SITRANS WF330 flowmeters are totally enclosed, with external weighing mechanics, operating with corrosive, abrasive or hot materials. SITRANS WF350 series operates with aerated gravity conveyors, and includes integral vents and baffles for air separation. For applications with little available headroom, the SITRANS WF340 series flowmeters provide the answer.

  Характеристика

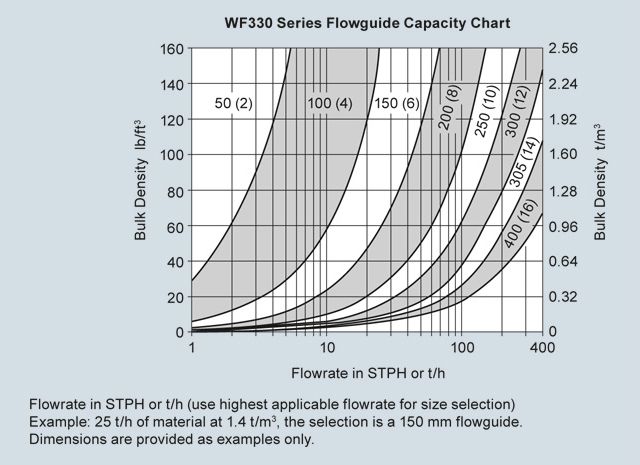

  SITRANS WF330 flowguide capacity chart

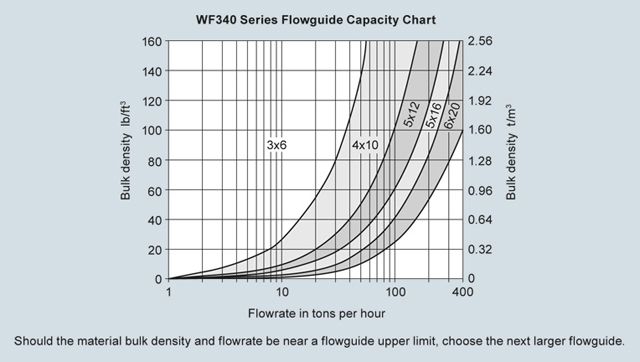

  SITRANS WF340 flowguide capacity chart

  Чертеж

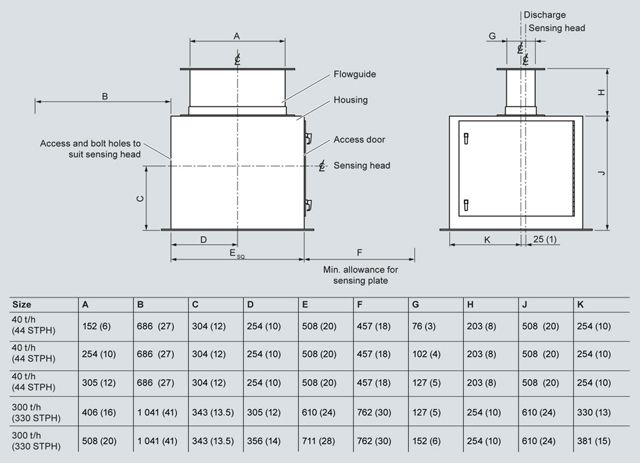

  SITRANS WF330, dimensions in mm (inch)

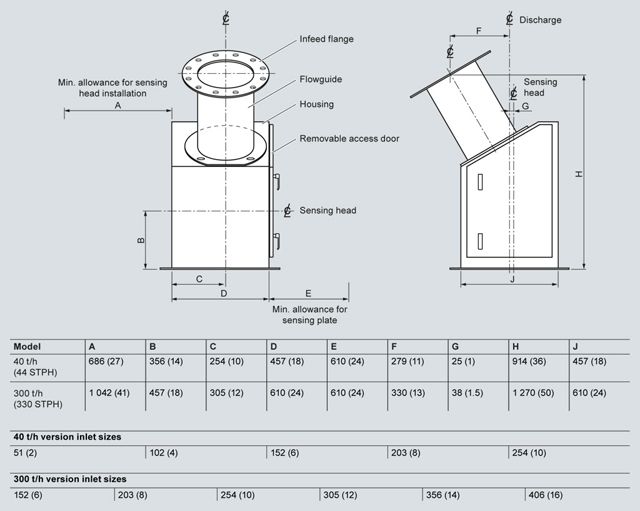

  SITRANS WF340, dimensions in mm (inch)



  SITRANS WF350, dimensions in mm (inch)

  Особенности

  • For specialized pre-feed applications
  • Sensing element mounted outside process
  • Flowrates from 0.2 to 300 t/h (0.2 to 330 STPH)
  • Continuously monitoring of the material flow without interrupting the process
  • Dust-tight construction: suitable for use in hazardous areas and in washdown applications that require frequent cleaning
  • Minimal maintenance or recalibration after the initial installation and material tests
